$ 2,200.00

Eltek Valere Cabinet with McLean AC

Category Cabinets
Listed Mar 9, 2014
Title Eltek Valere Cabinet with McLean AC
Price $ 2,200.00
Length 30
Condition New
Width 30
Height 61
Description

Details

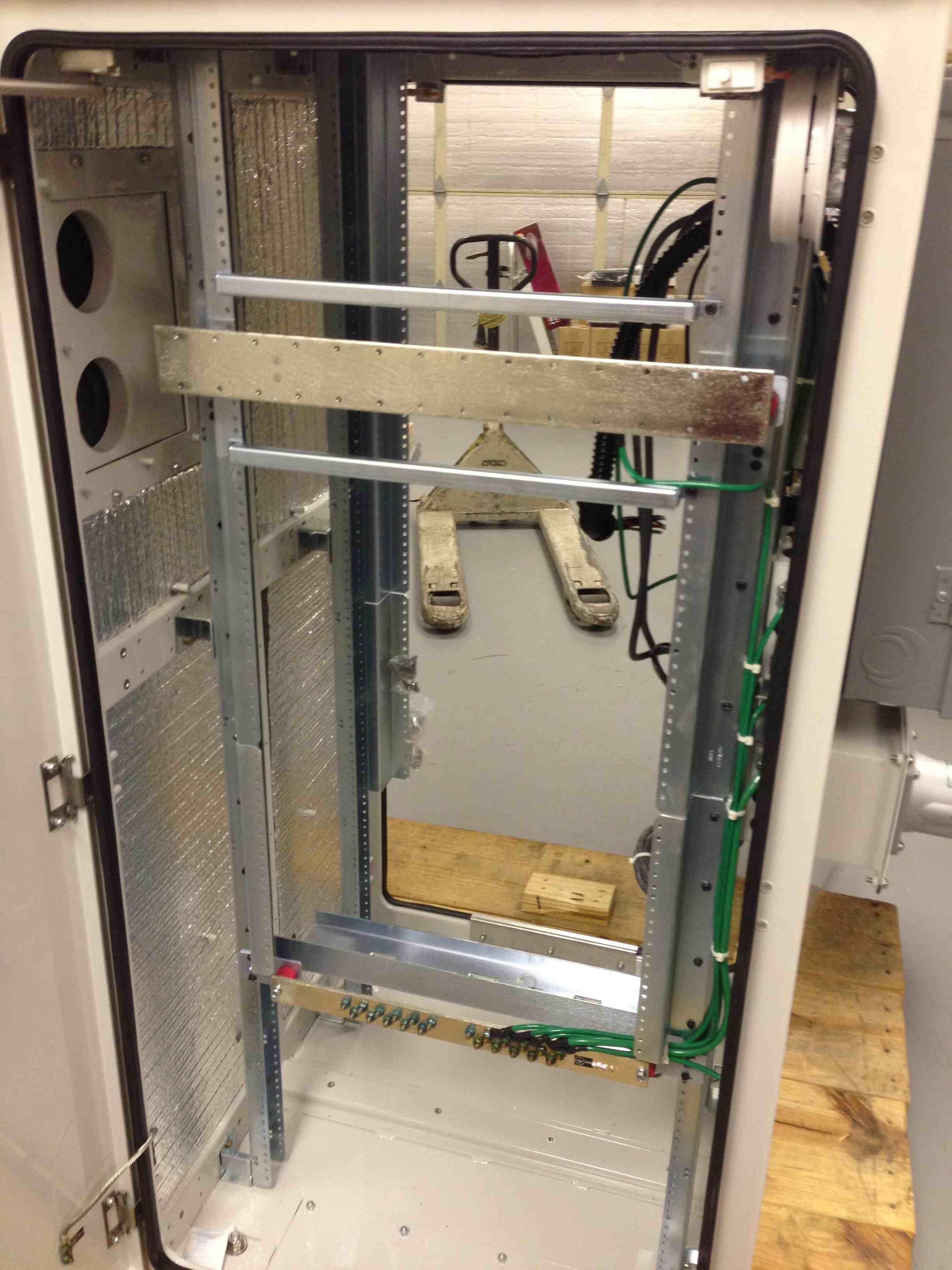

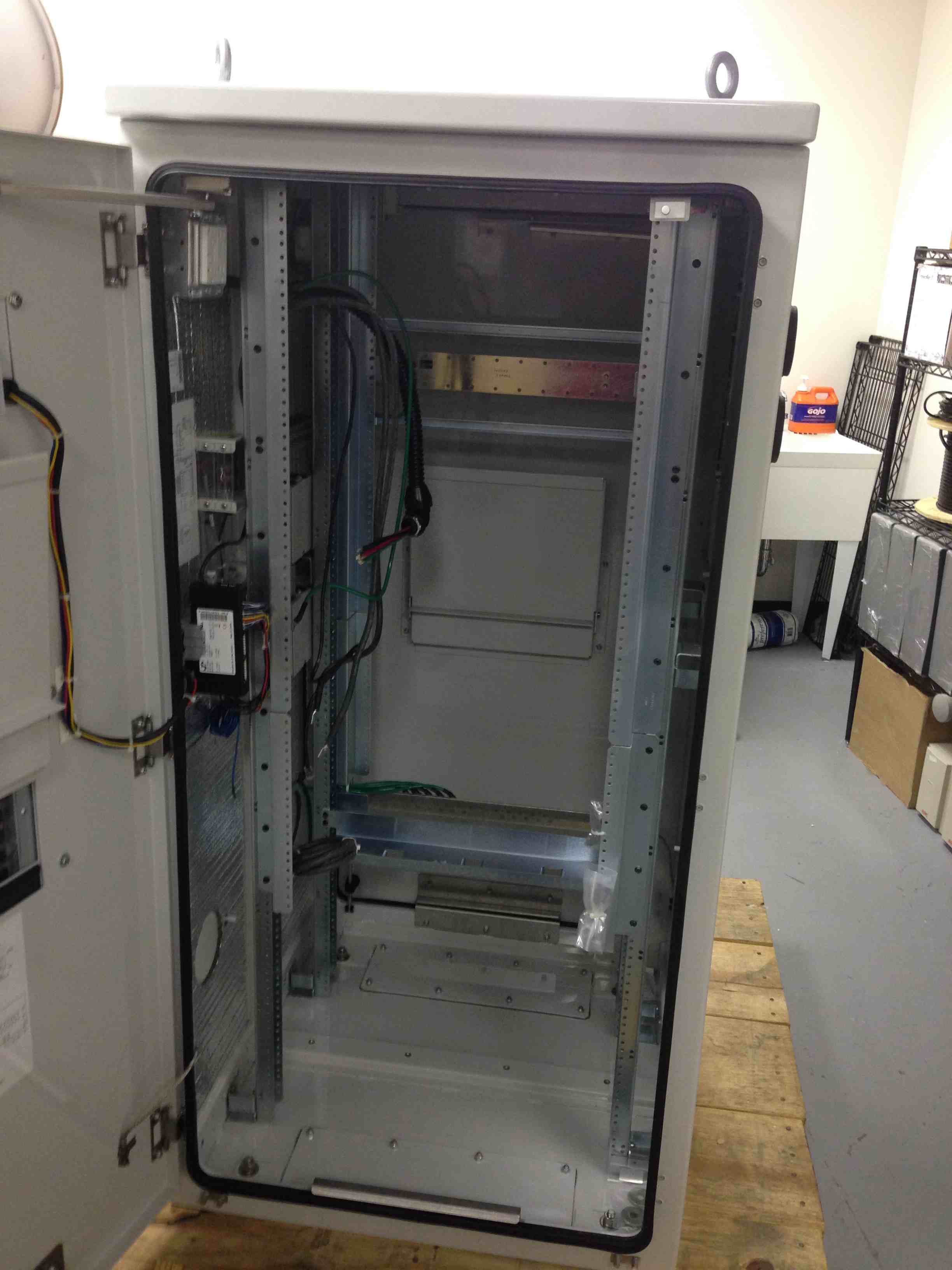

303030 Cabinet (30¿Wx30¿Dx61.25¿H, 30RU)

· UL Type 3 Listed Enclosure, GR487 capable

· 3 point latching system with Bellcore Electronics (7/16th)

handle and pad lock hasp

· Integrated Solar Shield

· Front & Rear rails w/23¿-19¿ Adapters, 20U (Incl. Power)

· Dual adjustable thermostat for cabinet temp alarms

· Interior LED light with on/off switch

· Front and Rear door alarm with technician override

· 10 Position Ground Bar with external cabinet Gnd studs

Cooling

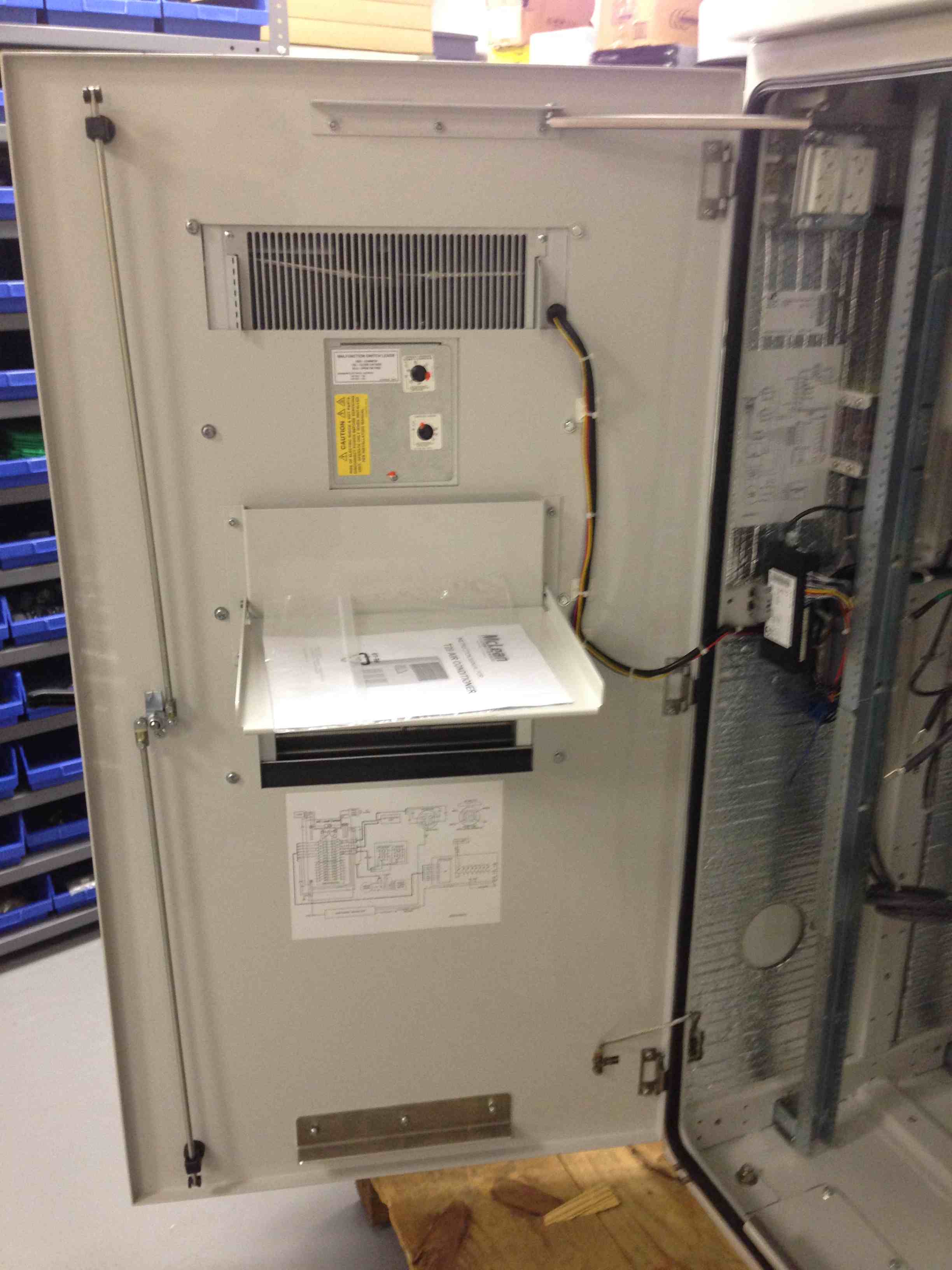

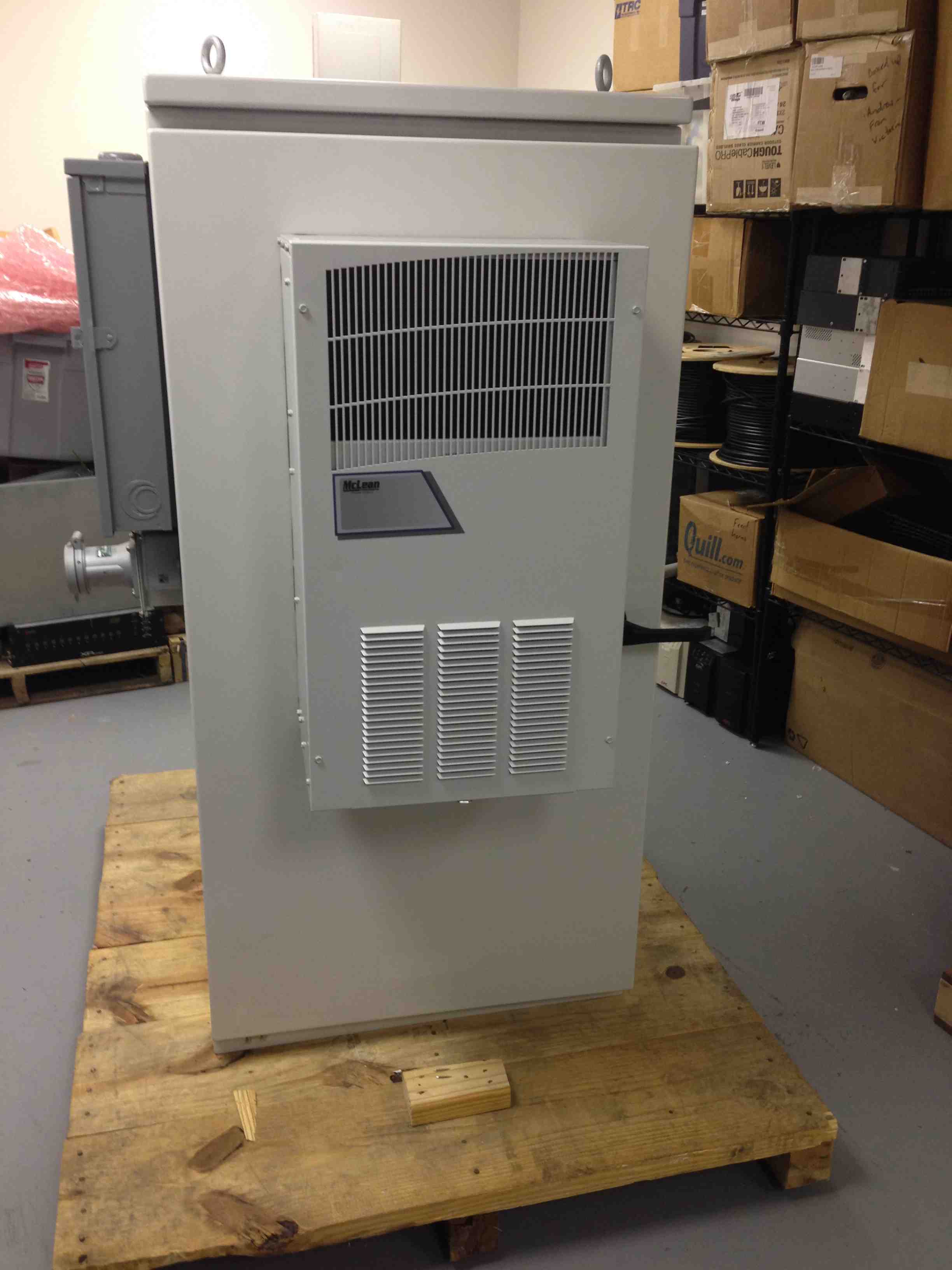

· 4000BTU Air Conditioner w/1000W heater

· At 45°C Outdoor Temp, Capable of:

3500BTU [1025W] Heat Load; Internal Temp: 40°C

4000BTU [1170W] Heat Load; Internal Temp: 50°C

AC Power

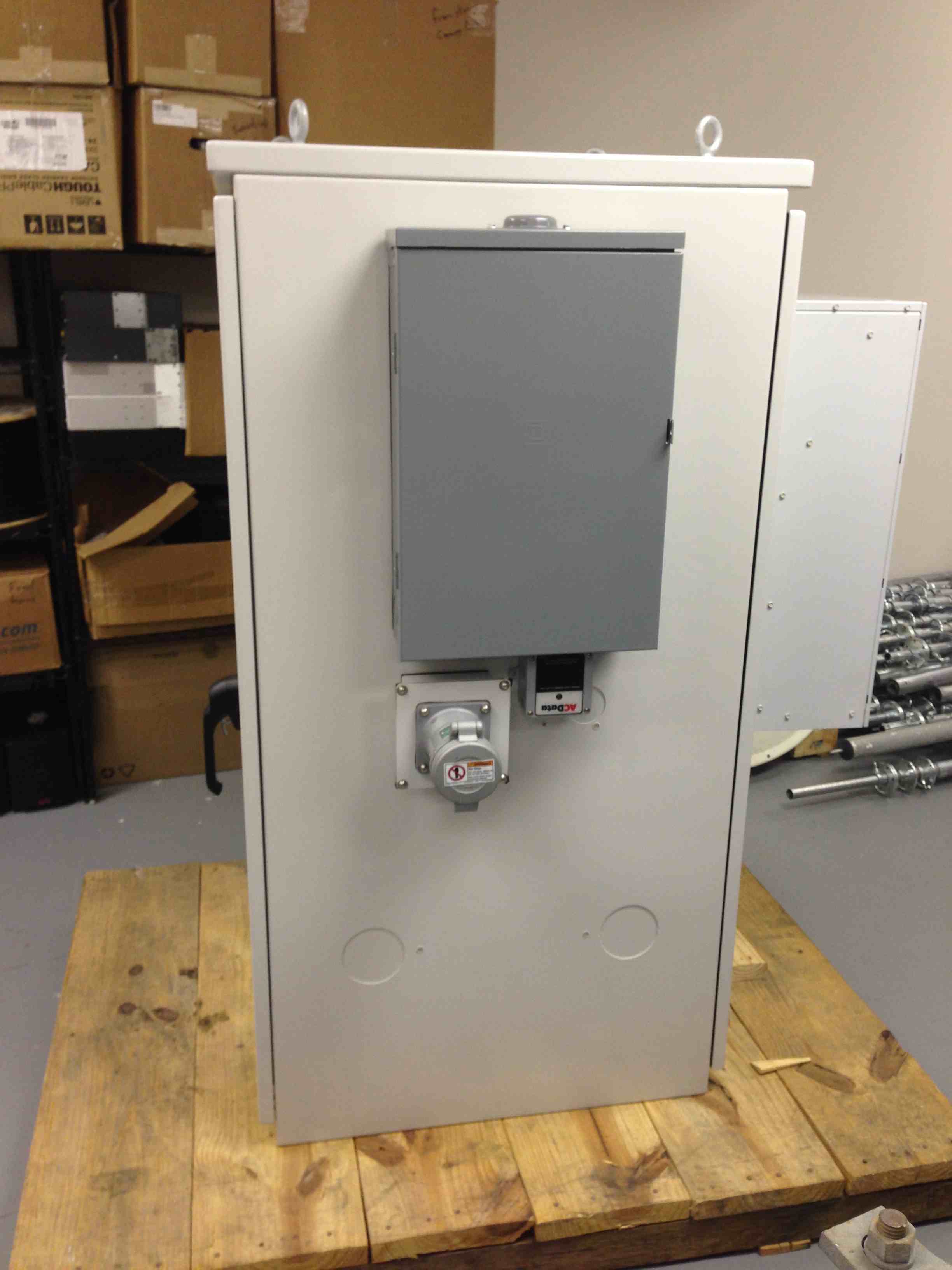

· 220-240VAC input to externally mounted AC Load Center

· 100A Main Breaker w/breakers for other AC Components

· Outlet, Quad GFCI, 20A, 110VAC

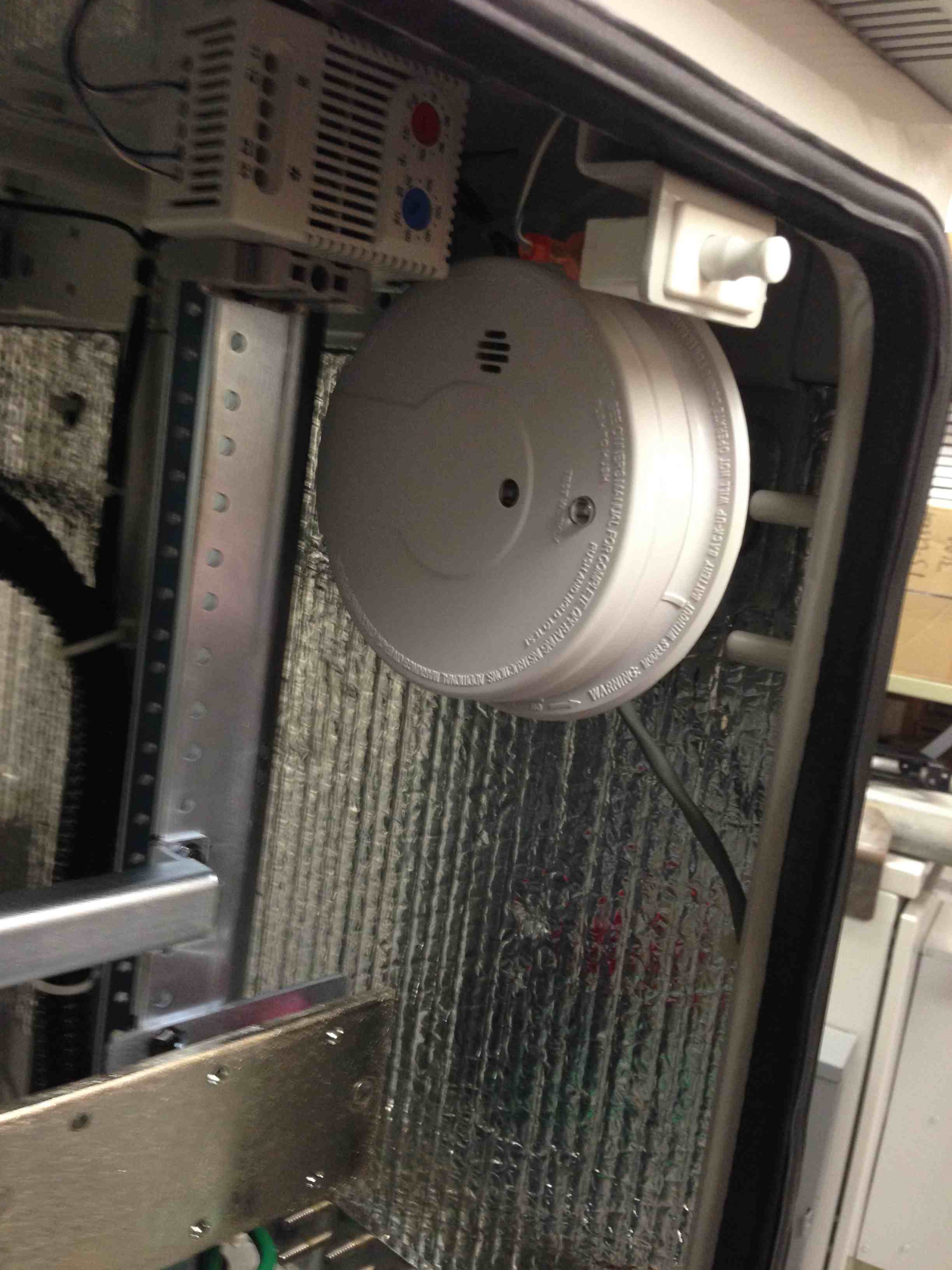

· AC Smoke Detector with Alarm Output

· Generator Connector, 100A Appleton, w/Manual Interlock

and 100A Breaker

· AC Surge Suppressor, 60kA, wired to Main AC Lugs

· AC Fail Relay Contact with Alarm Output wired to Main AC

Lugs

Cable Entry

· Bottom Ports available for Entry Through Concrete Pad

· 2x 4¿ SitePro Boots on Side Access Panel (No Inserts)

Alarming

· I/O Monitor for cabinet and customer alarming, CAN

connection to Smartpack Controller

Battery try has been removed and is not being sold with the NEMA

DC Power system has been removed and is not being sold with the NEMA
